Automatic Connector Assembly Machine

The Automatic Connector Assembly Machine is developed for the automated assembly of multiple connector components, helping manufacturers streamline production and improve assembly efficiency. The machine automatically handles the assembly of the connector body, O-ring, plug, flower basket, and nut.

Product Features

• Automatic assembly of multiple connector components

• Suitable for connector body, O-ring, plug, flower basket, and nut assembly

• Separate equipment for positive and negative electrode assembly

• High production rhythm of 1,800–2,000 pieces per hour

• Low equipment power requirement of 5 kW

• Designed for a low-manpower production setup

• Compact machine structure for production-line integration

Two-Machine Assembly Configuration

One complete set consists of two automatic assembly machines:

• Positive electrode assembly machine

• Negative electrode assembly machine

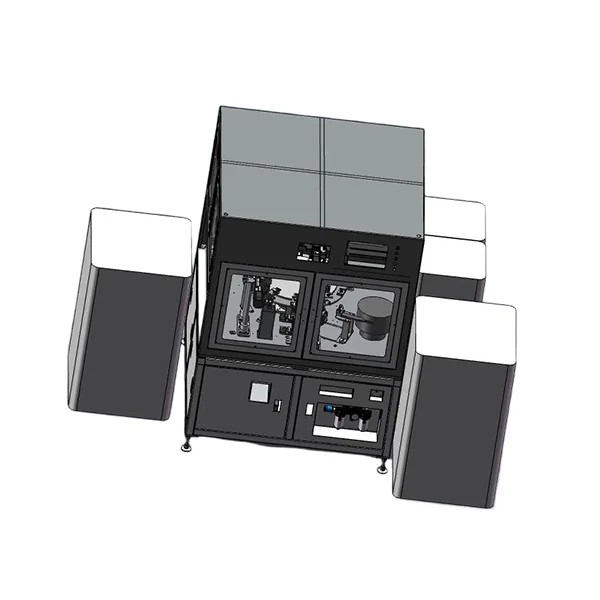

The two machines work as a complete production set for positive and negative electrode connector assembly. The illustrated equipment represents the positive electrode assembly machine.

Automated Assembly Process

The equipment integrates the assembly of key connector components into an automated workflow. Components such as the connector body, O-ring, plug, flower basket, and nut are handled according to the designated assembly sequence.

The automated process reduces repetitive manual operations and helps maintain a consistent assembly rhythm during continuous production.

Production Capacity

The machine is designed for a production rhythm of 1,800 to 2,000 pieces per hour, making it suitable for high-volume connector manufacturing.

Its automated operating mode allows manufacturers to maintain a stable production pace while reducing dependence on manual assembly.

Technical Specifications

Item	Specification
Machine Size	L3000 × W2000 × H1800 mm
Design Rhythm	1,800–2,000 pcs/hour
Voltage	AC 220V ±10%
Equipment Power	5 kW
Air Source Pressure	0.6–0.8 MPa
Gas Consumption	30 m³/h
Equipment Weight	300 kg
Personnel Allocation	0.5 people (1 person shared by both positive and negative electrode machines)

Low Labor Requirement

The equipment is designed to reduce manual involvement in connector assembly. The personnel allocation is approximately 0.5 person, with one operator shared between the positive and negative electrode assembly machines.

This configuration helps reduce repetitive assembly work and allows production personnel to supervise both machines within the same manufacturing setup.

Equipment Dimensions and Utilities

With dimensions of 3000 mm × 2000 mm × 1800 mm, the machine can be incorporated into an automated connector production line.

The equipment operates on AC 220V ±10% and has a power requirement of 5 kW. A compressed air source of 0.6–0.8 MPa is required, with gas consumption of approximately 30 m³/h.

Suitable for Automated Connector Production

The Automatic Connector Assembly Machine is suitable for manufacturers seeking to automate the assembly of connector bodies, O-rings, plugs, flower baskets, and nuts. Its high production rhythm, two-machine positive/negative electrode configuration, and low personnel requirement make it suitable for continuous connector manufacturing operations.

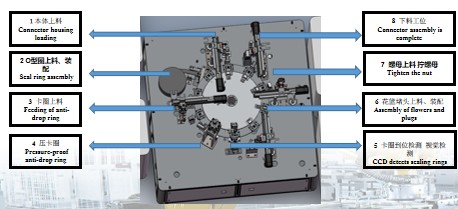

Process Flow Chart
