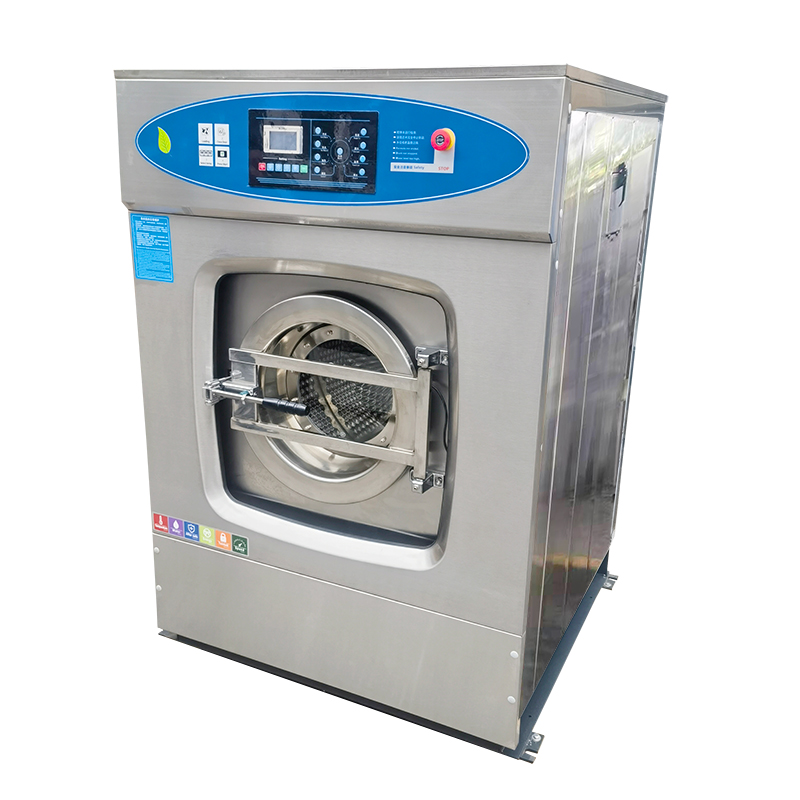

10-30kg Automatic Industrial Washer Extractor

Description

https://www.tzbjlwash.com/10-30kg-automatic-industrial-washer-extractor.html

The automatic industrial washer extractor is designed for commercial and industrial laundry applications requiring reliable washing performance, stable extraction, and easy operation. With multiple capacity options from 10kg to 150kg, this machine is suitable for hotels, hospitals, laundries, garment factories, textile processing facilities, and other professional washing environments.

Product Overview

This full automatic washer extractor is equipped with up to 30 editable washing programs, allowing users to adjust washing parameters according to different fabric types and cleaning requirements. A full touch screen controller is available as an optional configuration, providing a more intuitive and modern operating experience.

The machine adopts a variable frequency motor and inverter drive system, which improves speed control accuracy and helps reduce vibration during high-speed extraction. Combined with a professional shock absorption structure, the washer operates smoothly and safely without requiring a special foundation for installation.

Key Features

30 Editable Washing Programs

The machine supports multiple programmable washing cycles, making it suitable for different fabrics, loads, and washing processes.

Optional Full Touch Screen Control

The advanced computer control panel offers a user-friendly human-machine interface, making operation simple and efficient.

Variable Frequency Drive System

The inverter-controlled motor ensures stable speed adjustment, lower mechanical impact, and smoother high-speed dehydration.

Excellent Vibration Control

The shock absorption system, composed of strong springs and dampers, effectively reduces vibration during extraction.

High Dehydration Efficiency

The vibration damping rate can reach more than 95%. After standard cloth extraction, the remaining water content is less than 70%.

Easy Installation

No special foundation is required, helping reduce installation cost and site preparation time.

Durable Stainless Steel Structure

The machine is made of 304 stainless steel for improved corrosion resistance and long service life.

Enhanced Safety Design

Equipped with a safety door, emergency stop function, and anti-shake protection to ensure safer operation.

Available Models and Capacity Range

The automatic washer extractor is available in multiple models, including XTQ-15, XTQ-20, XTQ-25, XTQ-28, XTQ-30, XTQ-50, XTQ-70, XTQ-100, XTQ-120, and XTQ-150. The capacity range covers 15kg, 20kg, 25kg, 28kg, 30kg, 50kg, 70kg, 100kg, 120kg, and 150kg, meeting different commercial and industrial laundry demands.

Application Fields

This industrial washer extractor is widely used in:

• Commercial laundry plants

• Hotels and resorts

• Hospitals and healthcare laundry rooms

• Garment washing factories

• Textile and dyeing plants

• Schools, dormitories, and institutions

• Cleaning service companies

Technical Specifications

Spec of Full Automatic Washer
Model	XTQ-15	XTQ-20	XTQ-25	XTQ-28	XTQ-30
Capacity	15 KG	20 KG	25 KG	28 KG	30 KG
Inner drum Dia.	630mm	750mm	750mm	800	800mm
Inner drum  Depth	480mm	455mm	555mm	580	590mm
Motor	1.5 KW	2.2 KW	2.2 KW	3 KW	4 KW
Inverter	2.2 KW	2.2 KW	3.7 KW	4 KW	5.5 KW
Heating way	Steam heated or Electric heated
Steam consumption	25KG/H	25KG/H	25KG/H	25KG/H	30KG/H
Steam pipe dia.	20mm	20mm	20mm	20mm	33mm
Heating power	6KW	6KW	9KW	12KW	18KW
Nosie	≤65	≤65	≤65	≤65	≤65
Air compressor	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa
Water consumption	≤450KG	≤450KG	≤500KG	≤550KG	≤550KG
Votlage【V/P/HZ】	380/220	380/220	380/220	380/220	220/380
LXWXH	1100×1000 x1580mm	1100×1020 x1580mm	1100x1120x1580mm	1260x1160x1600mm	1360x1280x1850mm
Net weight	450kg	500kg	630kg	860kg	1180kg

Model	XTQ-50	XTQ-70	XTQ-100	XTQ-120	XTQ-150
Max.Capacity (Kg)	50	70	100	120	150
Inner drum Dia.(mm)	1080	1080	1200	1300	1470
Inner drum  Depth (mm)	575	730	856	900	850
Motor (kw)	5.5	7.5	7.5	11	18.5
Inverter (kw)	7.5	11	15	18.5	22
Heating way	Steam heated or Hot Water or Electric heated
Steam pipe dia.	1"	1"	1"	1 1/2"	1 1/2"
Heating power	30	45	60	72	72
Nosie (dB)	≤70	≤70	≤70	≤70	≤70
Steam compressor (MPa)	0.4-0.6
Air compressor (MPa)	0.5-0.6
Votlage【V/P/HZ】	Standard 380V 3PH+N 50Hz
Overall Dimension (mm) LXWXH	1610x1500x1800	1760x1500x1800	1690x1990x2030	1790x2200x2100	2050×2250×2300
Net weight(kg)	1650	2100	2800	3500	4000

Why Choose This Washer Extractor?

With programmable control, stable inverter-driven operation, durable 304 stainless steel construction, and reliable safety protection, this washer extractor provides an efficient solution for professional laundry processing. Its wide capacity range allows customers to choose the most suitable model according to washing volume, installation space, and production requirements.

Whether used for daily commercial washing or heavy-duty industrial laundry processing, this automatic washer extractor delivers stable performance, convenient operation, and long-term durability.
